ARI-SM , ARI-AM , ARI-COM Operation information & Location information collection module

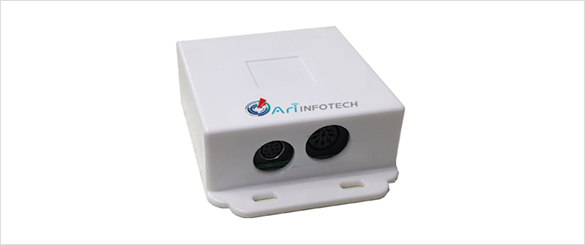

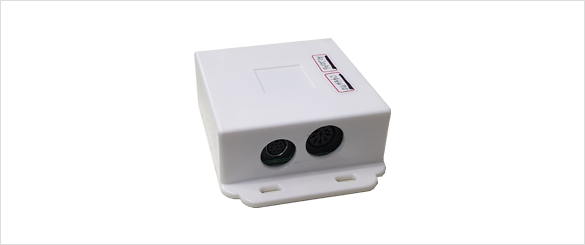

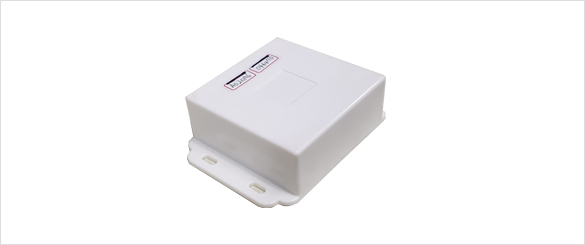

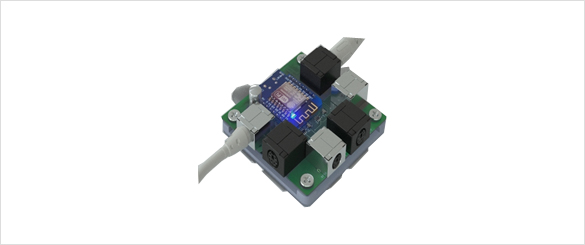

ARI-SM Operation information collection module

Product description

  • Attached module with an IoT sensor that automatically collects work information by attaching it to a sewing machine
  • Work information gathering using a needle location sensor and a needlebar sensor signal
  • Transmission of work information data collected by ARI_SM to the sensor with WIFI method
  • Located a main controller, a needle location sensor, and a needlebar sensor

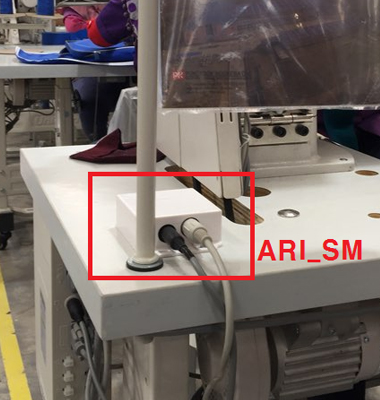

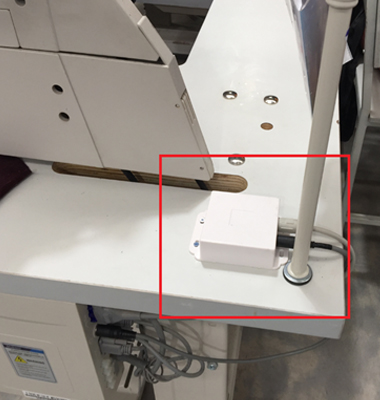

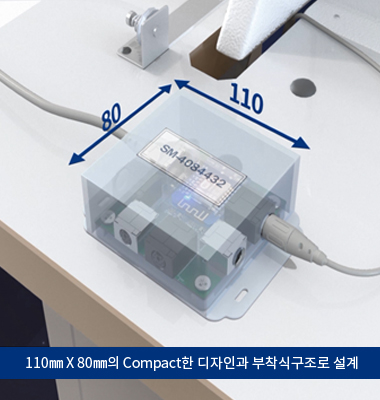

Applied picture

ARI_AM Operation information collection module

ARI-AM Product description

  • Attached module with an IoT sensor that automatically collects work information by attaching it to a sewing machine
  • Adding NFC functionality to the ARI-SM module adds worker information collection capabilities
  • Work information collected from ARI_AM is WIFI-enabled to send data to the server
  • Upgraded product complements the functionality of the ARI-SM product and renews its design

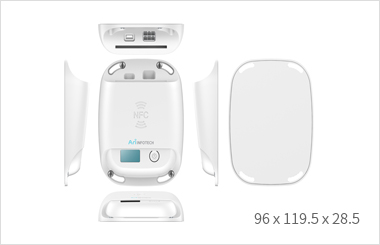

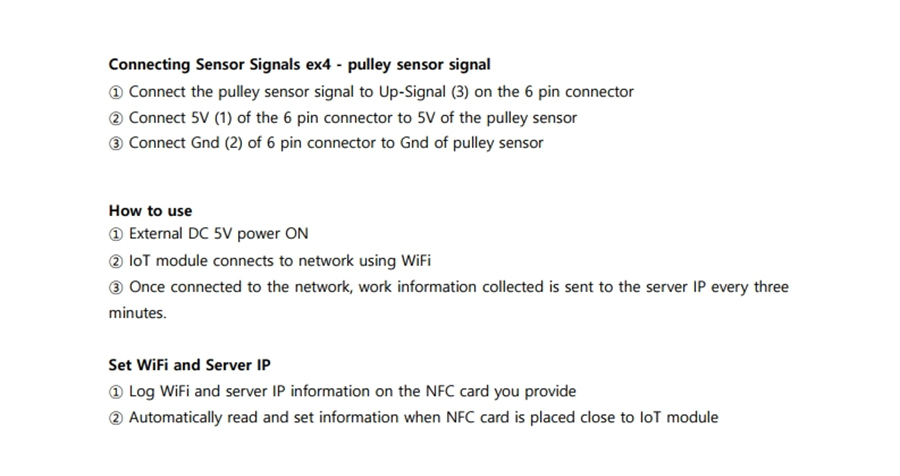

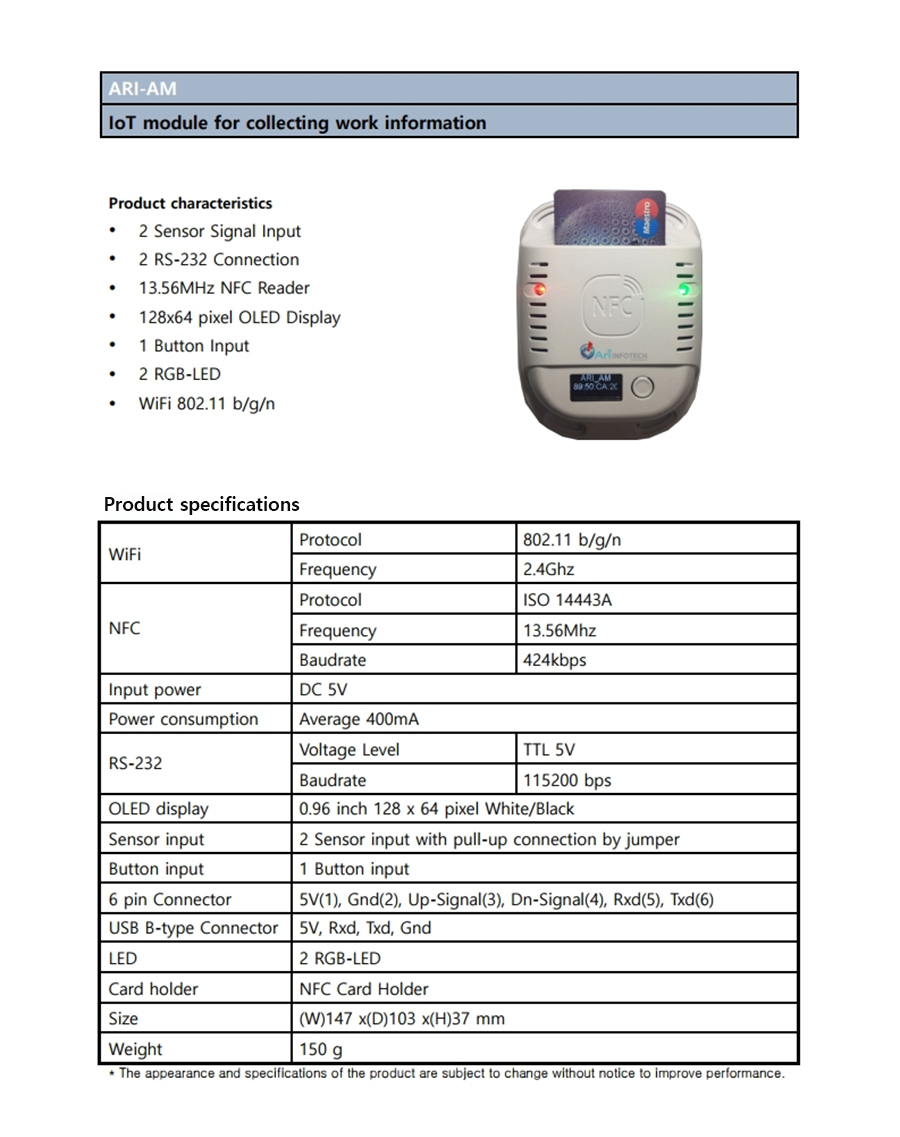

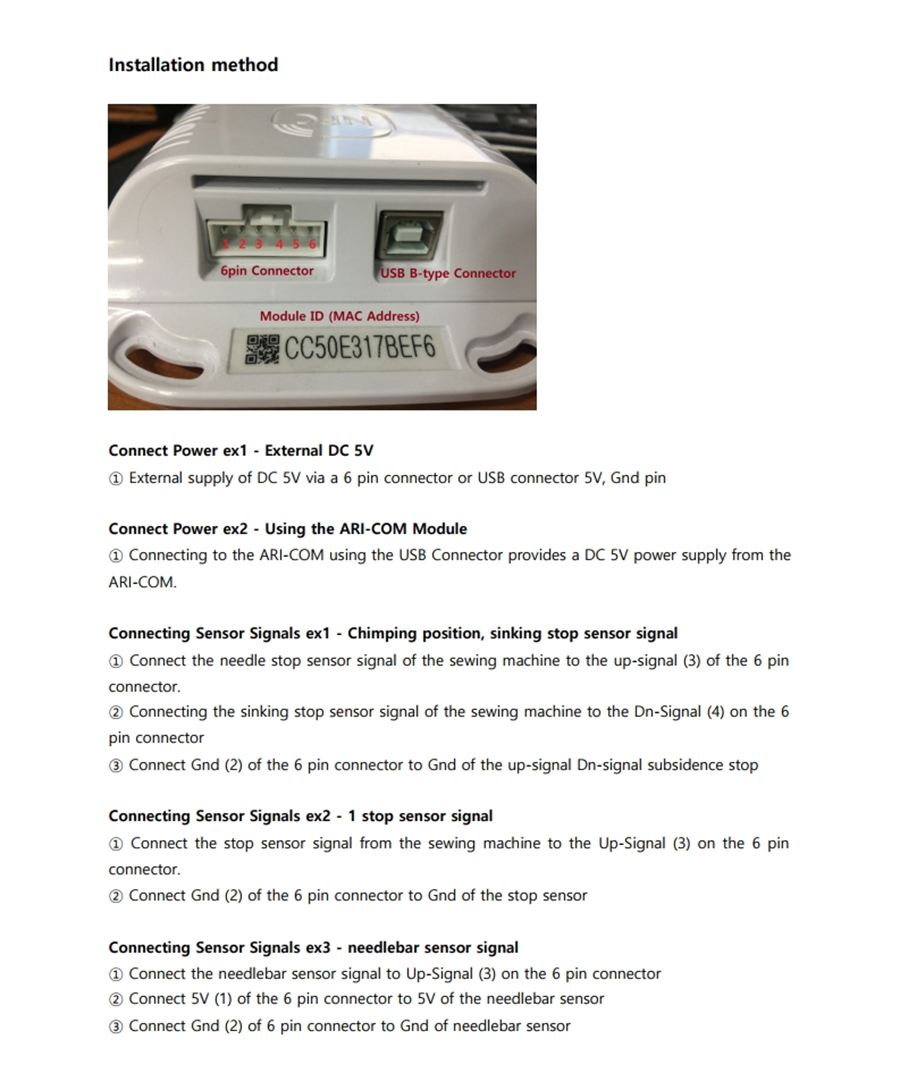

ARI-AM Product specifications

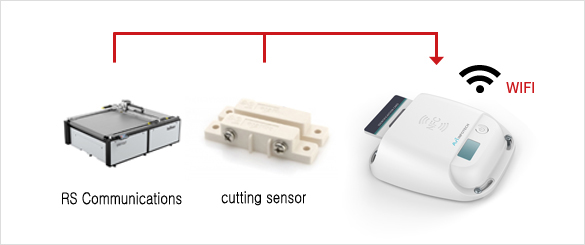

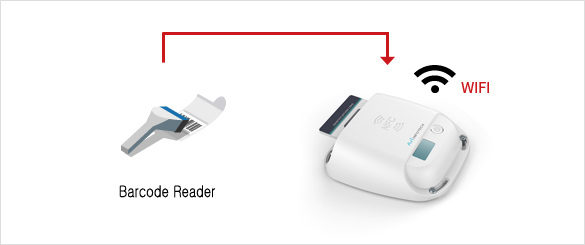

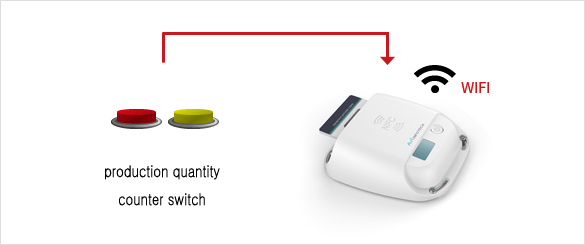

Various operating modes of ARI_AM

  • Production Line Application
  • Applying the Cutline
  • Application of inspection process
  • Material management application
  • Additional function collecting workers information by adding NFC function to the ARI_SM Module
  • Attached module with an IoT sensor that automatically collects work information by attaching it to a sewing machine

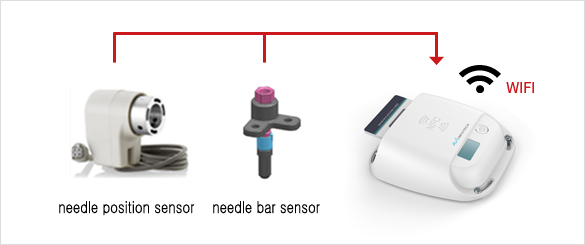

  • Work information gathering using a needle location sensor and a needlebar sensor signal
  • Transmission of work information data collected by ARI_AM to the sensor with WIFI method
  • Located a main controller, a needle location sensor, and a needlebar sensor

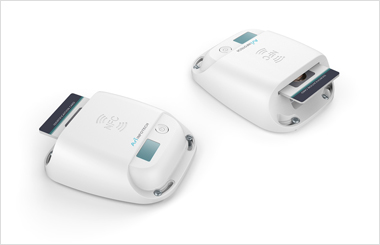

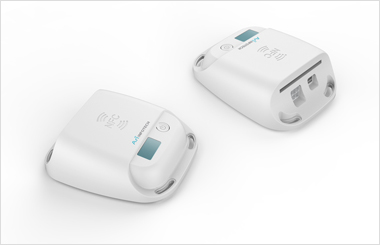

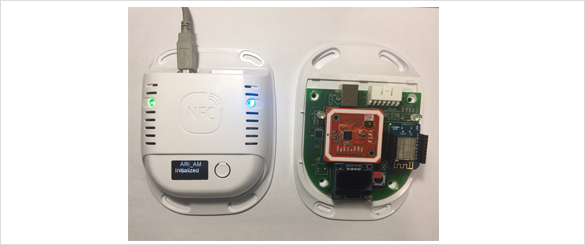

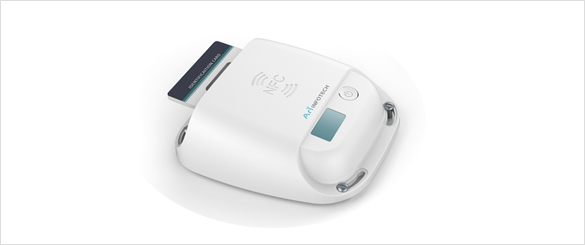

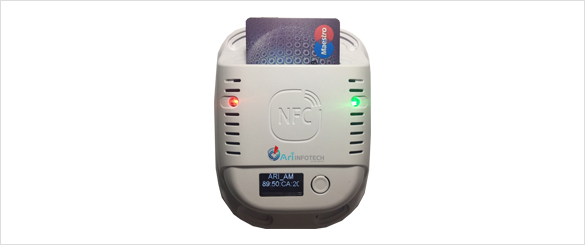

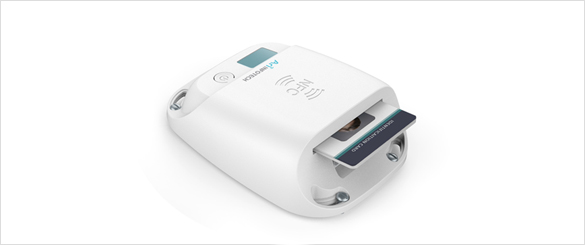

Product Photograph

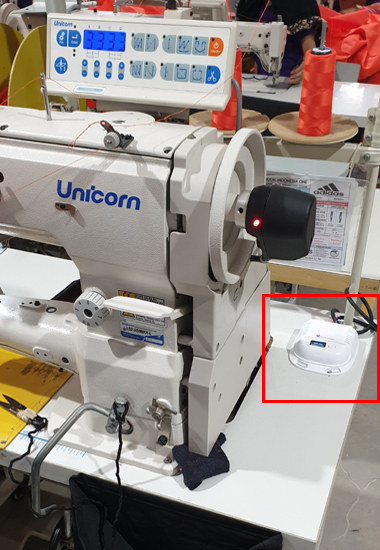

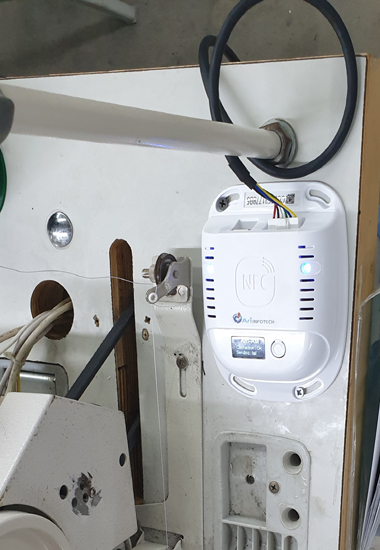

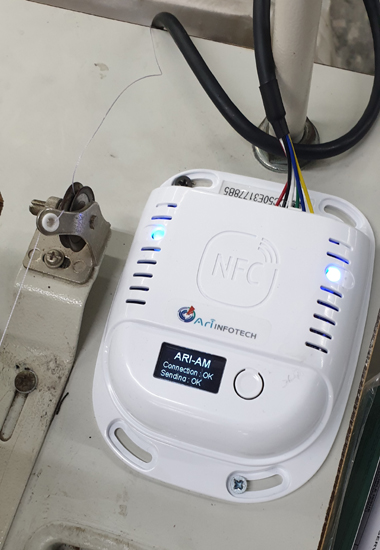

Applied picture

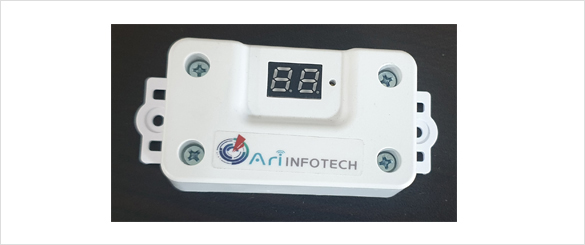

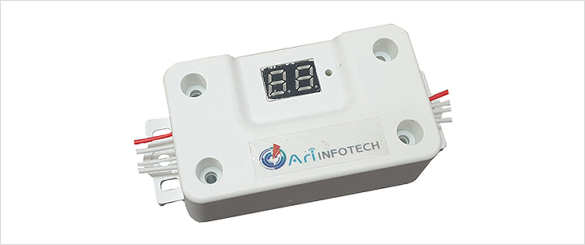

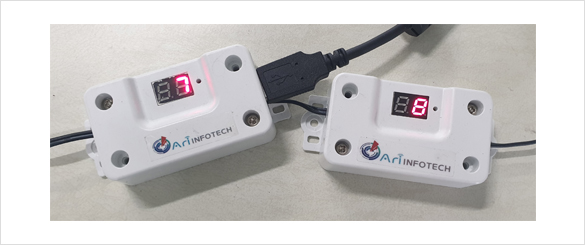

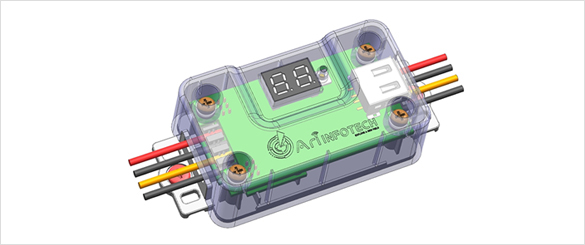

ARI_COM Location information collection module

Product description

  • Module for collecting arrangement information of machines automatically
  • Transmission of collected arrangement information of machines to the sensor with WIFI method
  • Master ARI_AM collects working information on connected modules using ARI_COM's line
  • Function for gathering data out of producing lines in the sewing factory

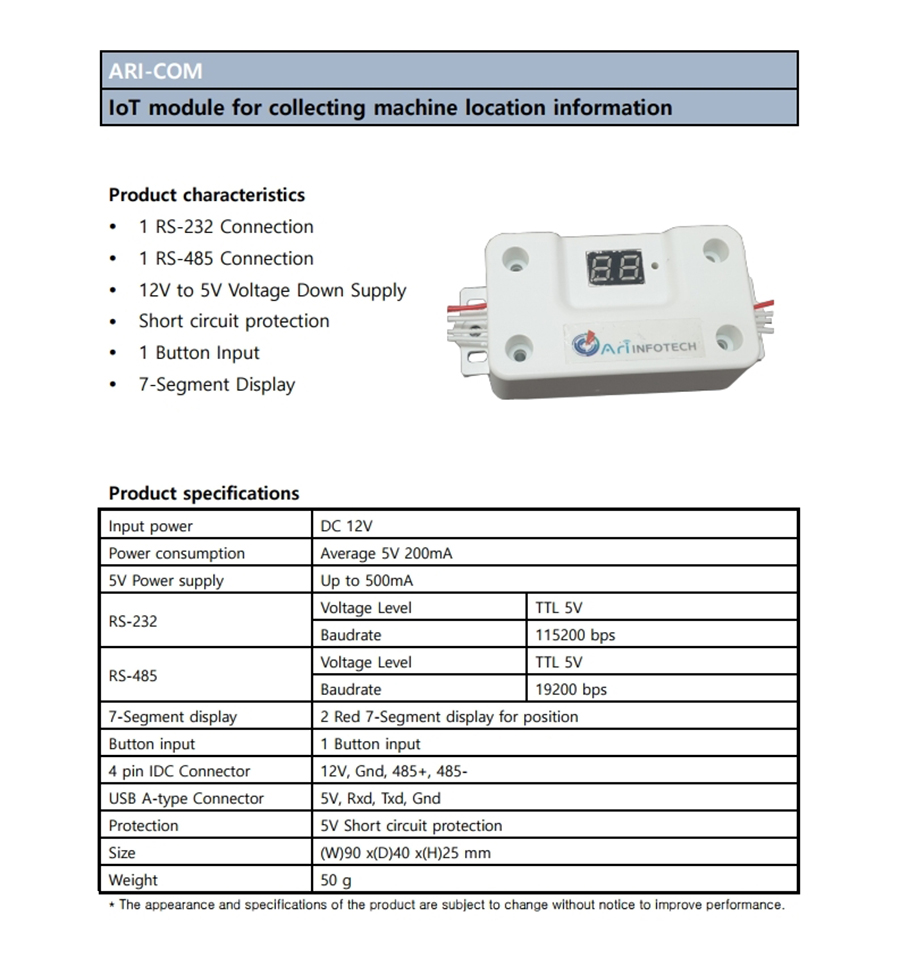

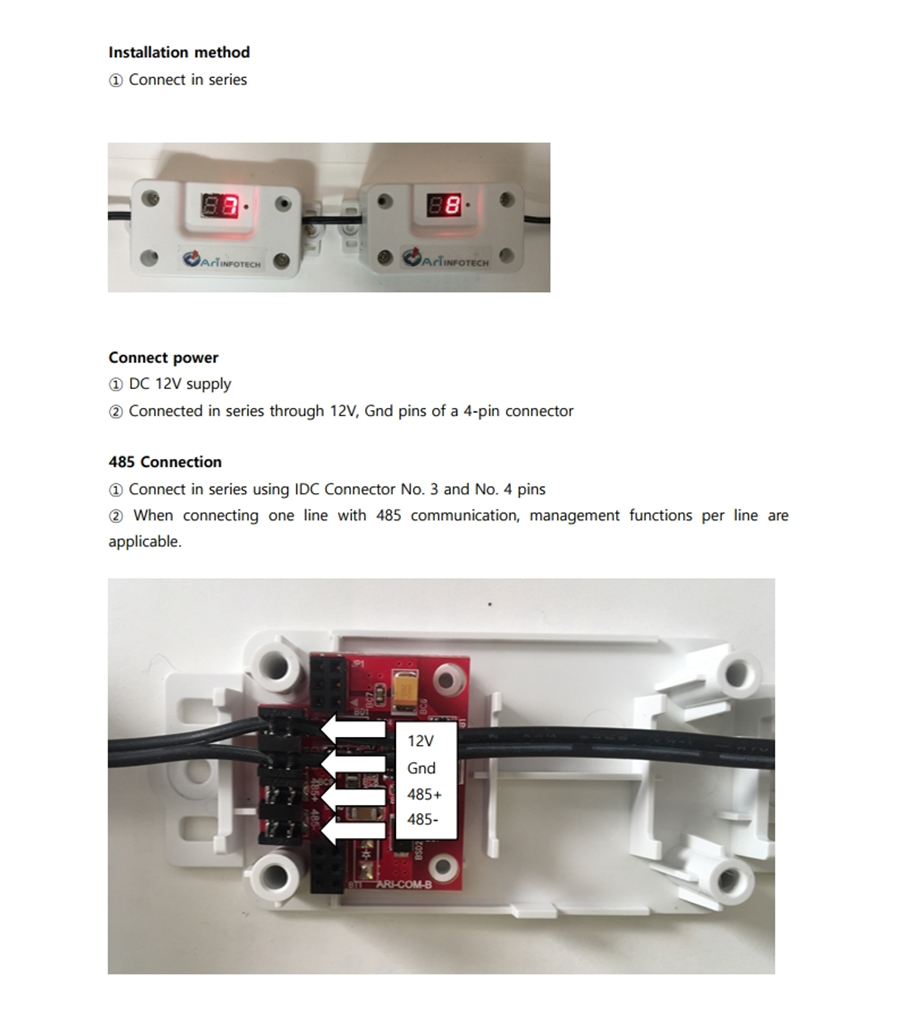

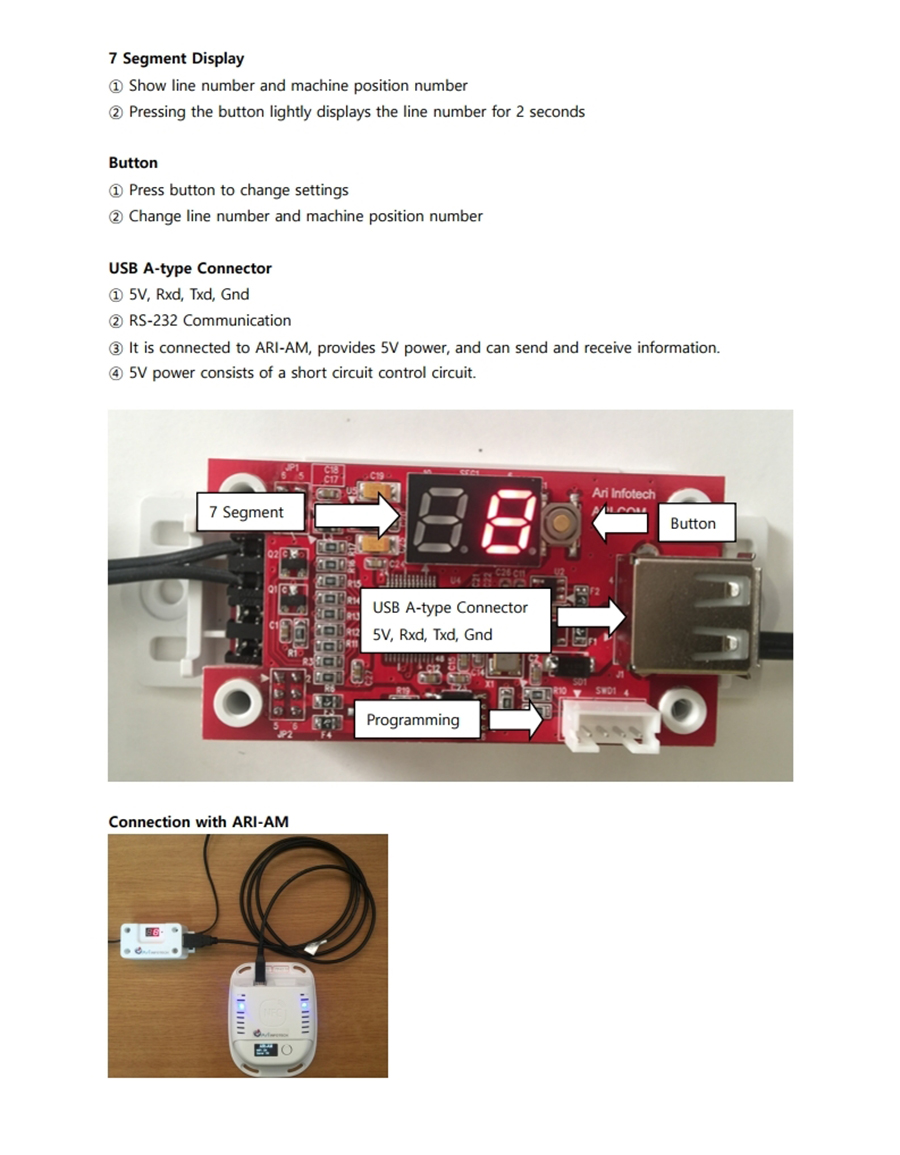

ARI-COM Product specifications

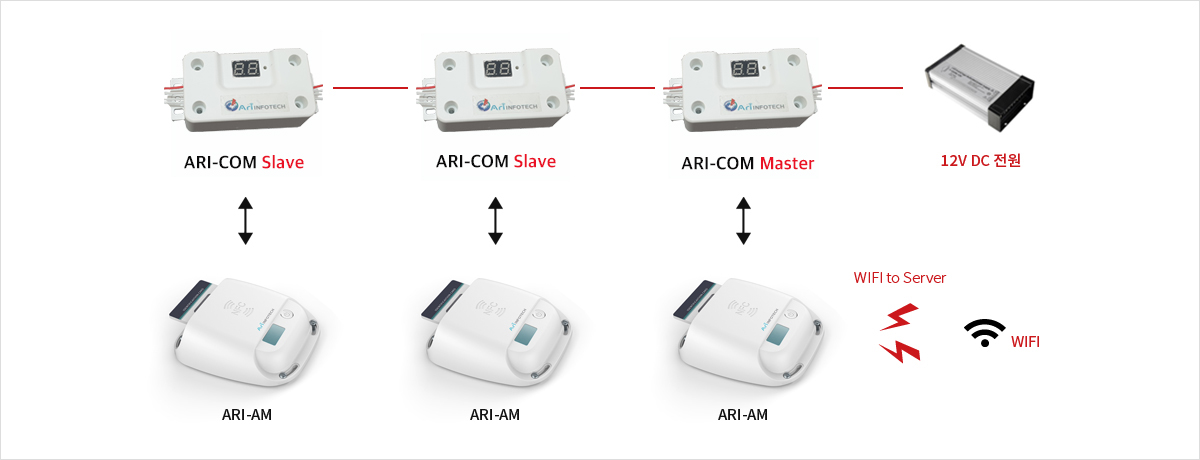

Provide location information for ARI_COM

  • 422 Master-Slave communication is used and module power is supplied through the 422 line
  • ARI-COM is fixed to the production line, using the ID of COM as the location information of the connected machine
  • Master ARI-AM uses 422 lines to collect work information on connected modules
  • Master ARI-AM passes collected task information to the server using the WIFI
